Single-phase UPS models range from 1 to 22 kVA, while three-phase single module systems range from 15 to 2,000 kVA.. All Toshiba uninterruptible power systems have a wide range of optional accessory gear.. These End-to-End UPS systems are suitable for a wide range of applications including datacenters, telecommunication, retail, healthcare, broadcasting, commercial, emergency lighting, and industrial.

The tower design UPS solution with LCD touch-screen display provides unmatched access for UPS monitoring and control. Toshiba emergency backup UPS solutions offer power to protect vital electronic resources from today’s all-too often blackouts, brownouts and power surges.

The End-to-end uninterruptible power supply lineup also includes workstation UPS for power protection for small office computers and equipment with built-In automatic voltage regulator.

The Toshiba Industrial 5000 Series double-conversion Uninterruptible Power System is available in two configurations: a three-phase in, single-phase out 3P1 Solution and an all-new NEMA 3R Solution.

All Toshiba 5000 Series models feature industrial rated components: transistors, contactors, and capacitors designed for a 20-year lifespan as well as self-contained surge protection devices.

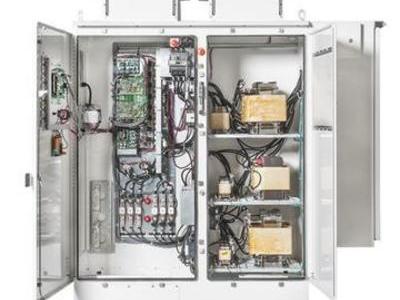

The Toshiba NEMA 3R Solution is ideal for harsh and dusty environments such as water/wastewater, mining, manufacturing, pipelines, and transportation hubs. The NEMA 3R Solution is available with or without integrated battery storage and accommodate three-phase power input and three-phase power output and utilizes all-IGBT architecture. The NEMA 3R rated enclosure is capable of withstanding operating temperatures from -10°C to 50°C.

The G9000 Series UPS is available in capacities of 100, 160, 225, 300, 500, 750, 1000, 1330, 1500, 1600, and 2000kVA and comes with an industry-leading three-year onsite warranty. It is designed for stand-alone or parallel use in up to eight-unit configurations (100-1000kVA) or six-unit configurations (1330-2000kVA) without requiring the use of a special switchgear cabinet.

Using the new Toshiba IGBT technology in the rectifier/converter, DC/DC chopper, and the inverter sections of the UPS, the G9000's double-conversion topology provides an AC/DC/AC efficiencies of up to 97% at loads from 50% to 100%. Even at 20% loading, the efficiency remains greater than 94%. This is 10% to 20% better than current industry systems, making the G9000 excellent for N+1 parallel systems where loads are typically 30-40%.

4400 Series

The Toshiba 4400 Series uninterruptible power system (UPS) is the next-generation 3 phase UPS. The double-conversion, all insulated-gate bipolar transistor (IGBT) 4400 Series UPS features a digitally controlled IGBT input rectifier, an intelligent low harmonic pulse-width modulation (PWM) output, state-of-the-art electronic battery isolation circuitry, and an easy to navigate local touchscreen interface.

The small footprint and total front access mechanical design requires zero rear clearance and includes features such as top, bottom, and/or side cable entry, standard sized air filter provisions, and lockable keyed doors. Customization is available through a number of options, such as internal battery backup, internal transformers for specific voltage applications, and remote monitoring with the Toshiba RemotEye® 4 multi-protocol UPS monitoring solution.

The 4400 3 Phase Uninterruptible Power Supply (UPS) utilizes double-conversion, all insulated-gate bipolar transistors (IGBT) technology and is available in power ranges from 15 to 100kVA. Ideal for generators with wide voltage and frequency input window without utilizing batteries. 4400 Series UPS Systems are available with internal transformers for numerous input and output voltage requirements. Includes matching battery cabinets for extended run times and matching auxiliary cabinets for load distribution and maintenance bypass system configurations. 4400 Series UPS systems are ideal for data centers and easy to install and customize for multiple markets and applications.

Toshiba’s Monitoring System (TMS) is a cloud-based remote monitoring service that allows Toshiba’s experts to monitor your uninterruptible power systems (UPS) twenty-four hours a day, seven days a week. The TMS adds another monitoring layer on top of your existing monitoring solution. Toshiba’s experts will be able to monitor your UPS assets and help maximize uptime of your critical applications. The TMS provides peace of mind by quickly resolving any issues that could compromise uptime before they occur. As a bonus, Toshiba experts analyze UPS data and provide recommendations for service maintenance and UPS upgrades as your business expands. Toshiba sees value in connecting your Toshiba UPS assets to track UPS health, maximize uptime, provide faster service by immediate fault identification, environmental monitoring, data analytics, and many other services.

Features:

• 24/7 remote access to your UPS using a standard web browser
• Alerting system in case of UPS event to your cell phone (SMS) or by email
• Redundant monitoring solution to your existing monitoring system
• Faster service by immediate fault identification

Technology:

The TMS uses RemotRadar Cloud, an IoT platform, as its underlying technology which allows machine-to-human interaction, ie. UPS-to-TMS interaction. This allows for Toshiba experts to safely monitor your UPS 24/7.

Combined with RemotEye 4, Toshiba’s UPS IoT-Ready edge card, it provides a secure connection to RemotRadar Cloud via MQTT, a lightweight data transfer protocol. It also utilizes the latest one-way (ASSET-To-TMS) authentication and encryption for a secure connection and data encryption that is more secure than VPN. This means that that RemotRadar Cloud/TMS does not interrogate the UPS and does not go into your network.
